2023 Lextra LXT Bike’s

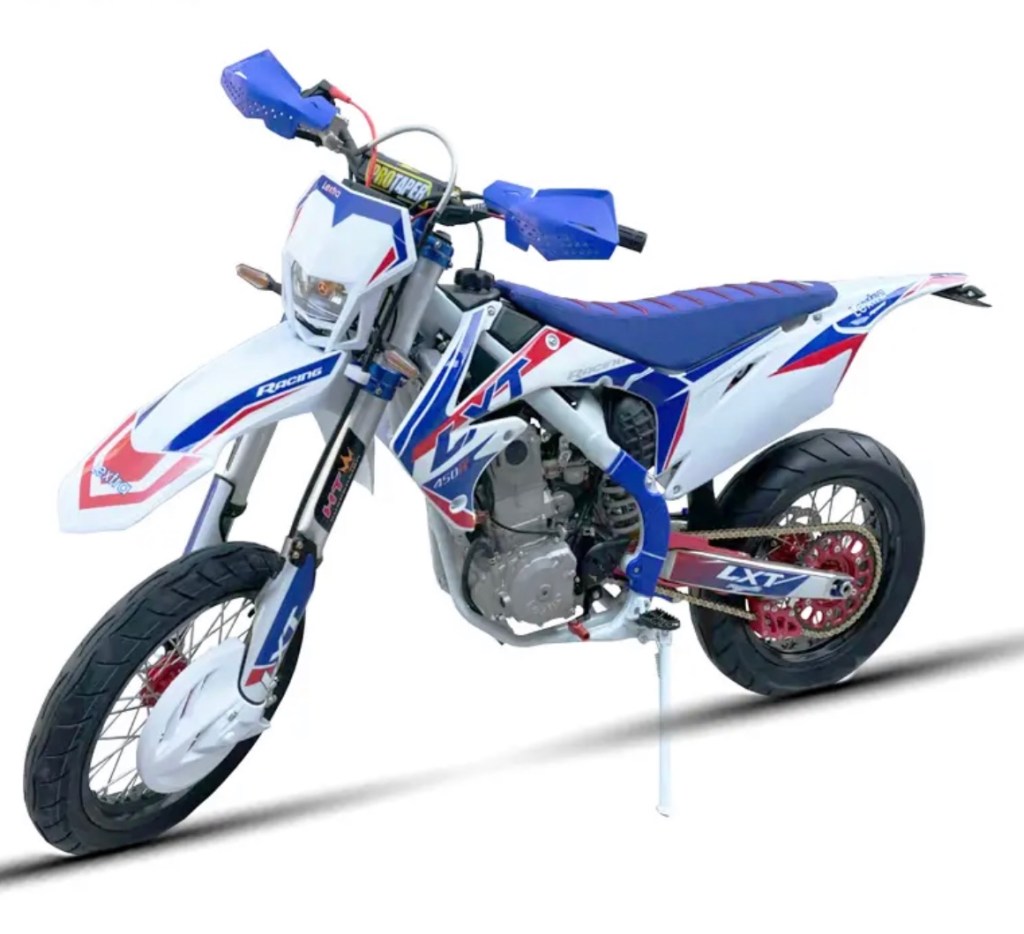

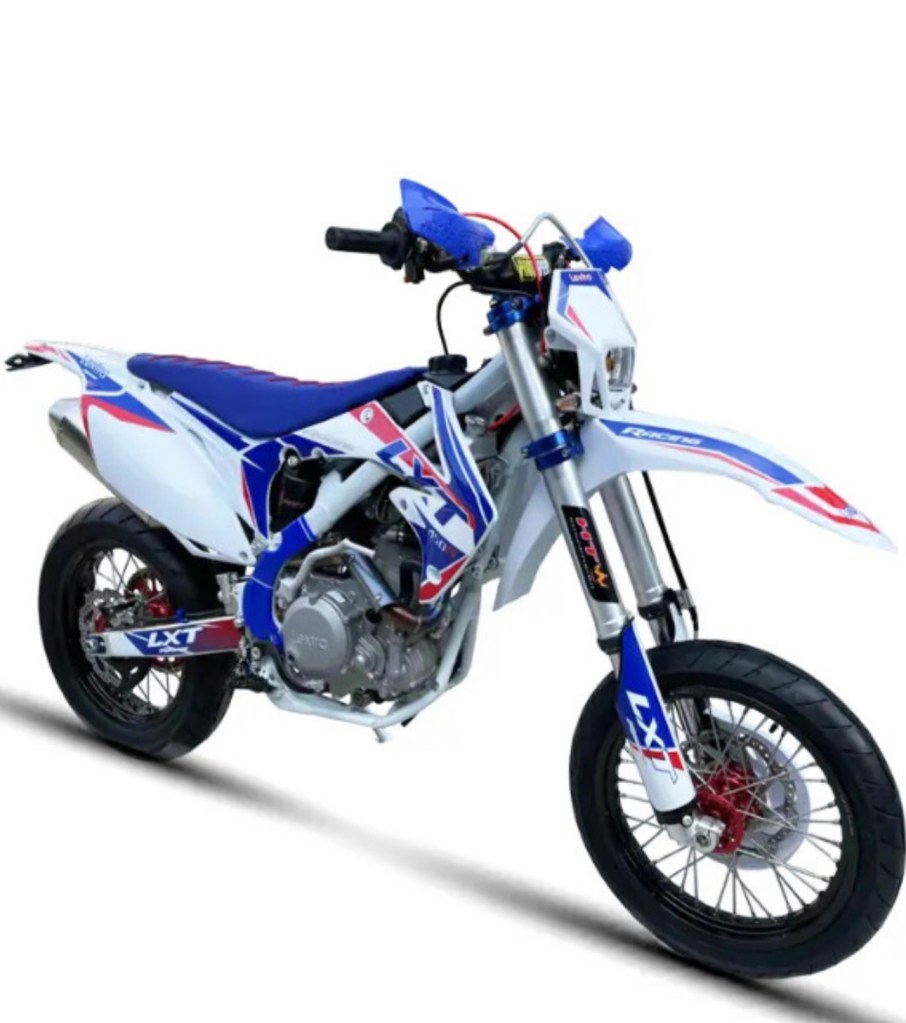

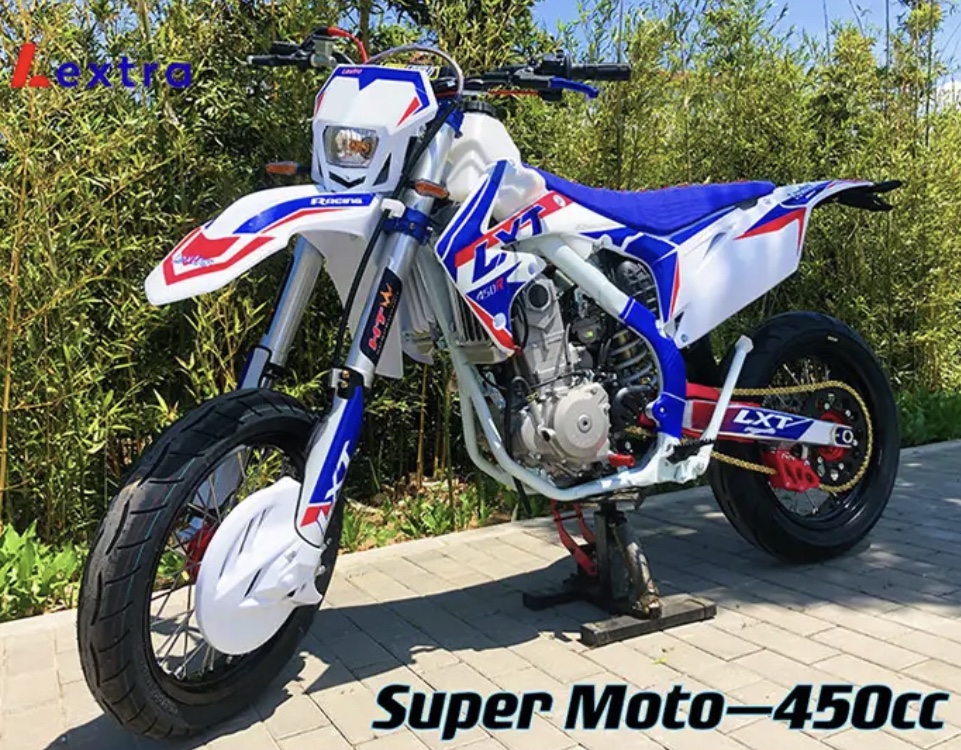

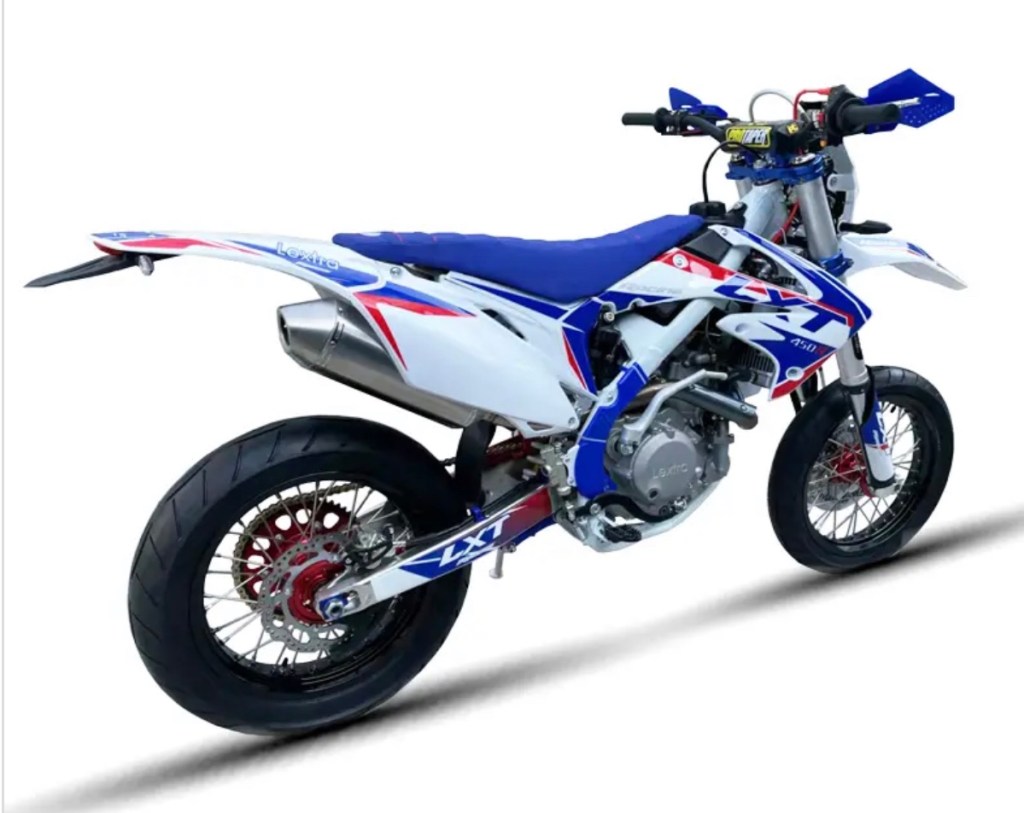

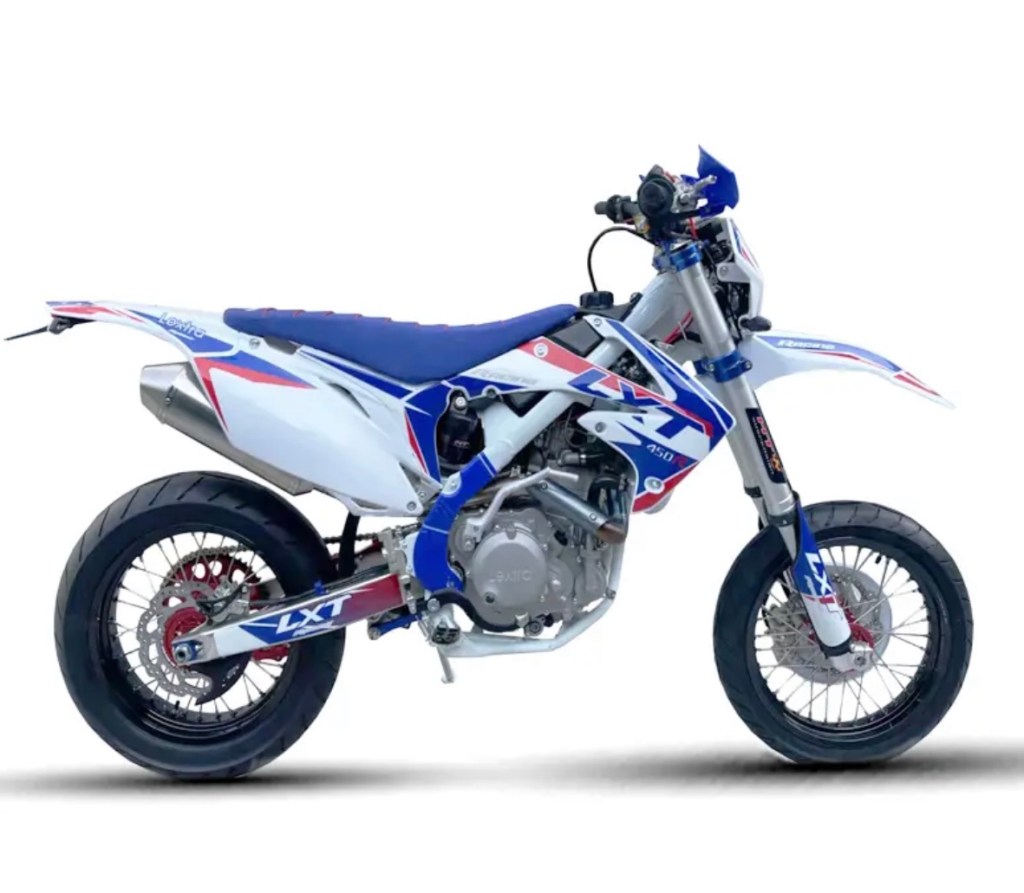

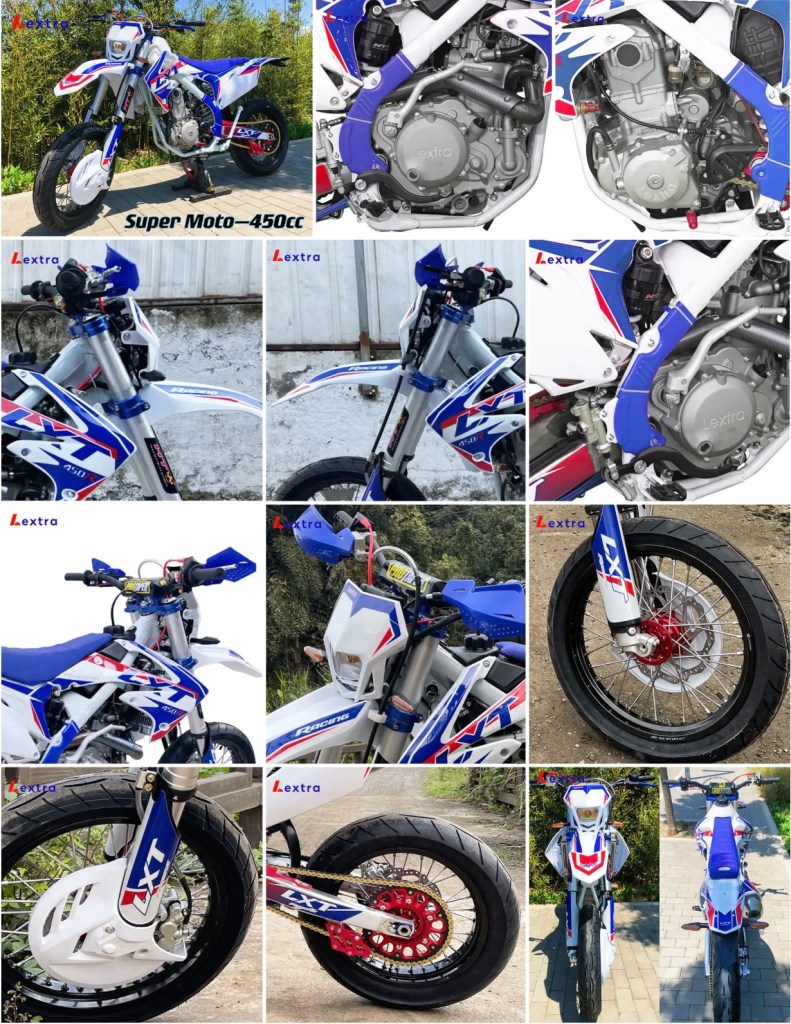

4th Series: 2023 LXT 450R Gallery

• • •

LXT 450R SuperMotoCross Specification

Engine Model:

Zongshen NC450

Engine Type:

Single Cylinder, 4 Stroke, 4 Value, Water Cooling, Single Overhead Camshaft with Balance Shaft

Displacement:

449cm³

Bore and Stroke:

94.5 x 64mm

Compression Ratio:

10.7

Fuel Delivery:

KEIHIN Brand PWK38 Carburetor

Maximum Power:

32KW/9000rpm

Maximum Torque:

NM/7000rpm

Gearshift:

Method Internatioal 6-speed Gearshift. ,

Gearshift Pedal:

Forging CNC

Starting Method:

Electric/Kick Start

Iginition Method:

CDI

Frame

L x W x H:

2160X810X1280m

Wheel Base:

1490mm

Vehicle Weight:

124kg

Seat Hight:

920mm

Minimum Ground Clearance:

270mm

Fuel Tank Volume:

6.5L

Handle Bar:

7075 Al-alloy Reducer Handle Bar

Battery Model:

12V/6A Nanometer Colloid Battery

Transmission Ratio:

520/13T-47T Manganese Steel Sprocket, Japanese KY-520H Chain

Frame:

Double Beam Cradle Frame With Imported Hascrome (same material as KTM), Al-Alloy Sub-frame

Front Shock Absorber:

Taiwan HTW Inverted Single Carvity and Double Adjustable Shock Absorber:

Stroke: 300mm

Length: 945mm

Inner Diameter: Ø48m

Rear Shock Absorber:

Taiwan HTW Double Adjustable Shock Absorber with Forging Cylinder:

Stroke: 120mm

Length:485mm

Rear Fork:

Forging structure

Chain Adjuster: Al-Alloy CNC

Steering System:

7 series Casting

Al-Alloy Streering Stem

Taper Bearing by Special Steel

CNC 360° Clutch Lever

Chain Frame:

Double Beam Cradle Frame With Imported Hascrome (same material as KTM)

Al-Alloy Sub-frame

Front Wheel:

Tubeless Fr Tyre 110/70-17

Tubeless Rr Tyre 150/70-17

Rear Wheel:

7 Series Al-alloy Rim

Manganese Steel Spoke

Chroming Copper Adjusting Nuts

CNC Hub

CNC Al-alloy Bush

Hollow Special Steel Fr/Rr Axle

Cooling System:

Al-Alloy Water Tank and Wind Deflector

Panasonic Fan

Brake System (F):

Disc Brake

Dual-piston Calipers

Brake System (R):

Single-piston Caliper

Forging Al-Alloy

Brake Arm Lighting System

Headlight:

Led bulb

Led turn light

Led taillight and its bracket

Speedometer:

Digital
